DUN-SOLAR™ FPE Backsheets
DUNMORE is one of the world's leading manufacturers of photovoltaic backsheets used in the production of solar panels. DUN-SOLAR™ backsheets are available in various constructions, and the DUN-SOLAR FPE backsheet is a proven and reliable backsheet component used by many solar module manufacturers. DUN-SOLAR FPE backsheets have a high performance two layer construction with a fluorinated finish layer applied to a polyester core and PE laminated structure, combining the durability of a fluorinated finish and a PET film laminate for superb physical, optical and electrical properties.
DUN-SOLAR FPE backsheets protect PV modules from UV, moisture and weather while insulating the electrical load of the modules, which can operate up to 1000 VDC. These DUN-SOLAR FPE capabilities are essential for functionality and longevity of the photovoltaic modules and safety of people who work with and near the PV module.

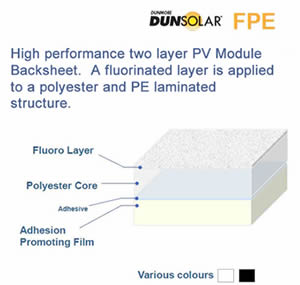

DUN-SOLAR FPE Construction
DUN-SOLAR FPE is a two-layered film lamination with a fluorinated film finish designed to be used as the backsheet for photovoltaic solar panels. It acts as a durable protective barrier for the electronic components found in solar panels.
Construction includes:
- Outer Layer - Fluorinated film layer
- Core - Polyester (PET) core
- Inner Layer - Adhesion-promoting PE film
- Adhesives to join the core and inner-layer
This construction is specifically engineered for use in photovoltaic backsheet applications requiring superb physical, optical and electrical properties.
DUN-SOLAR FPE Technical Properties Summary
- Superb electrical properties
- Superb physical properties
- Superb optical properties
- Fluorinated layer applied to PET film
- Shelf life - 12 months (maintained in original packaging) at 59-77°F (15-25°C) and 30-70% relative humidity
- Two different standard colors available: white, black; custom colors on request
Benefits of Using DUN-SOLAR FPE
- Improved module efficiency by incorporating a high gloss surface to increase solar reflectance
- Easily cleanable
- Chemically resistant
- Very strong "tear" bond to EVA
- Excellent stability under damp heat and freeze-thaw conditions
- Superior bond strength - extended damp heat testing shows superior retention of bond strength for all layers of the laminate
DUN-SOLAR Credentials
DUNMORE Corporation is one of the world's leading manufacturers of photovoltaic backsheets, with credentials that include:
- DUN-SOLAR FPE backsheets are UL recognized under file QIHE2, Photovoltaic Polymeric Materials-Component.
- All DUN-SOLAR backsheets are certifed by TÜV for Partial Discharge. Their low shrinkage in vacuum lamination provides bubble and wrinkle-free modules.
- DUNMORE's ISO 9001:2008 certified manufacturing facilities ensure that products and systems meet the high quality standards required by the photovoltaic industry.
Contact DUNMORE for DUN-SOLAR FPE Backsheets
Please Contact Us for more information on DUN-SOLAR FPE backsheets with fluorinated film finish for solar module manufacturing.
